General Information:

Raw material:LDPE, GMS, TAC, Talc, Butane or LPG

Finished products:PE Foam Net

Screw material:38CrMoALA

Barrel outside diameter: φ140mm

Extruder capacity:Approx 15-40kgs/hr

The range of foam net diameter: 20mm-150mm

Production line speed:10-60m/min

Installed power: Installation power:43kw Electric consumption:11kw/h

Place of origin: Shandong China

Brand: FUCHANG

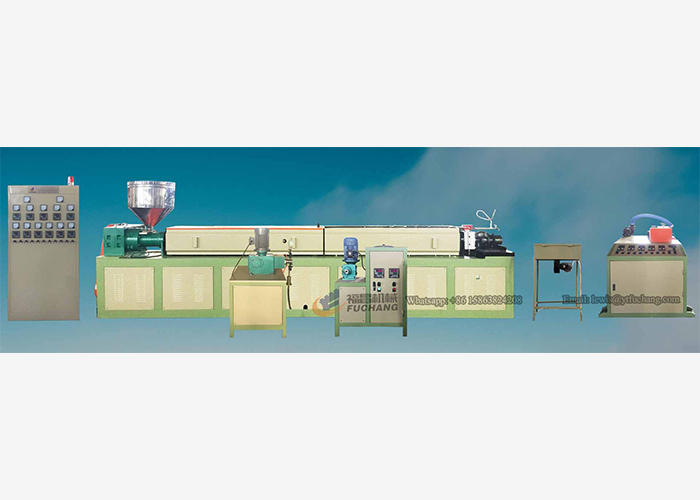

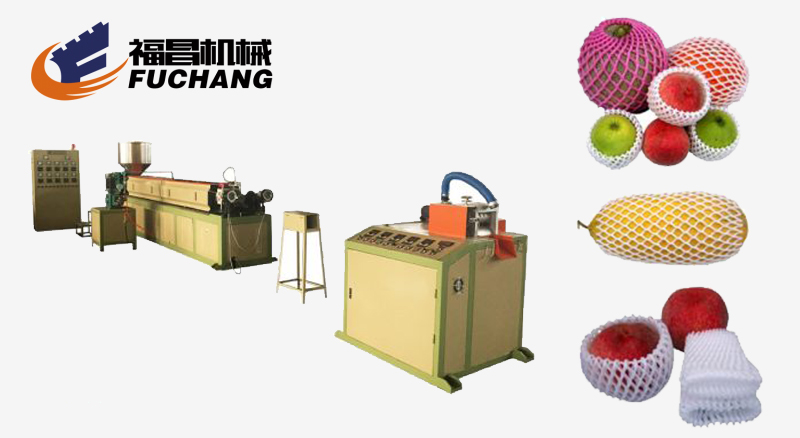

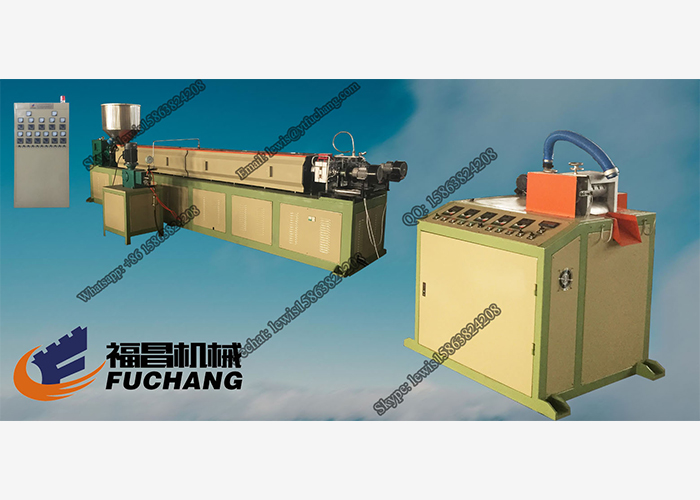

EPE foam Fruit Net Extruder Introduction:

The L/D of screw is 55 : 1.The raw material is high pressure and low density polyethylene . Through extruding system basis on formulation the raw material and the auxiliary material are transported into hopper by auto feeding system. The GMS will be injected into barrel by the pump as anti-contractor agent . Butane pump inject the liquid butane into the screw barrel and foam .The temperature is dropped by the barrel then the products will be extruded from the machine head.

Installation power:43kw Electric consumption:11kw/h

1.Motor of Reducer:11KW

2.Motor of Foaming Die Head Unit:4KW

3.Motor of Butane Gas Pump:1.5KW

4.Motor of GMS Pump:0.75KW

5.Heating Unit for GMS pump:2KW

6.Motor of Haul-off and cutting unit:0.75KW*2Sets

7.10Heating Unit:22KW

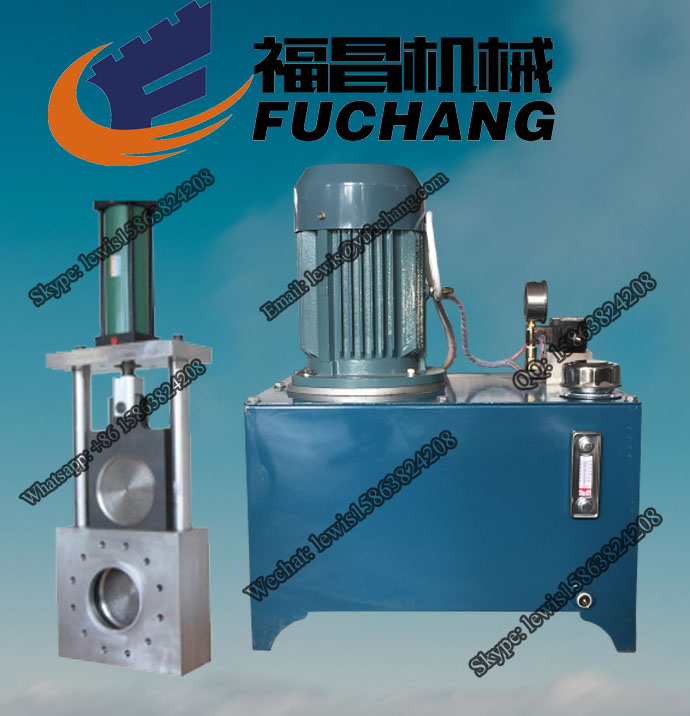

Automatic Screen changer unit

Bypass converting screen changer, material pressure is filtere equally when screen is changed, no stop, no sheet broken, no wasted material.

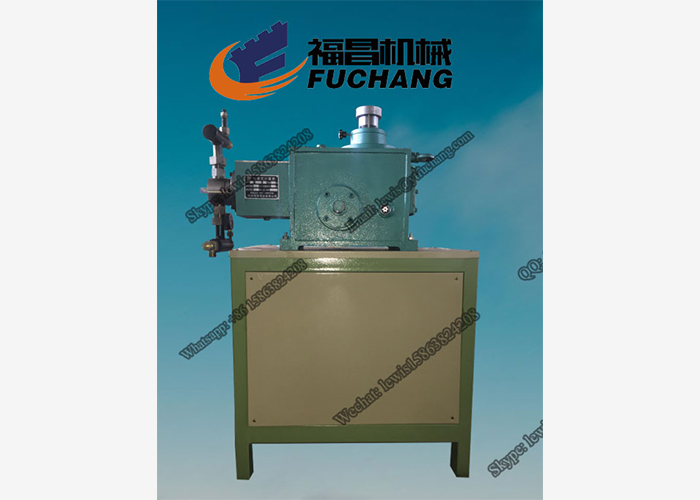

Butane gas pump

1.The high pressure pump is manufactured in China with good quality, famous brand, German technology.

2.Forming agent:Butane gas in liquid state.

3.Pump:high pressure metering pump.

4.Output pressure highest:Max 38MPa.

5.Output regulation:Regulate the itinerary of piston.

6.Pressure panel:0-38MPa.

7.Power:1.5kw 2HP ×4P×1set.

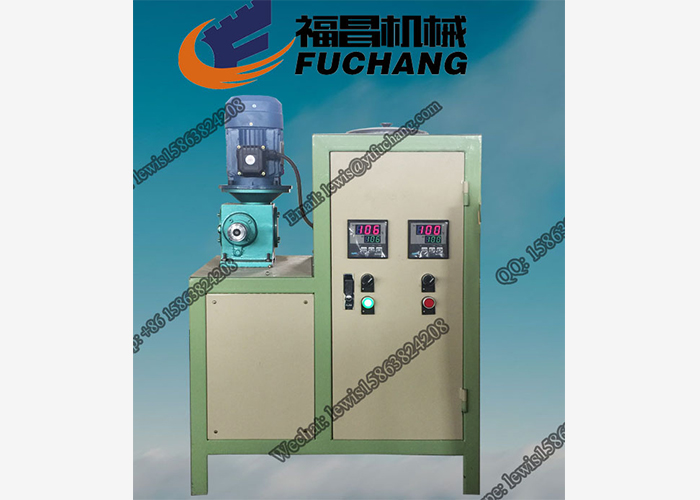

GMS Pump unit

1.Anti-cintroutor M-1:Hard fatly acid single glycerine.

2.Pump:high pressure measure pump, double pillarw piston.

3.The range of measure ment:35-245CC/min.

4.Volume of melting-pot:5-7L.

5.Driving motor by pump:1.5kw×4P.

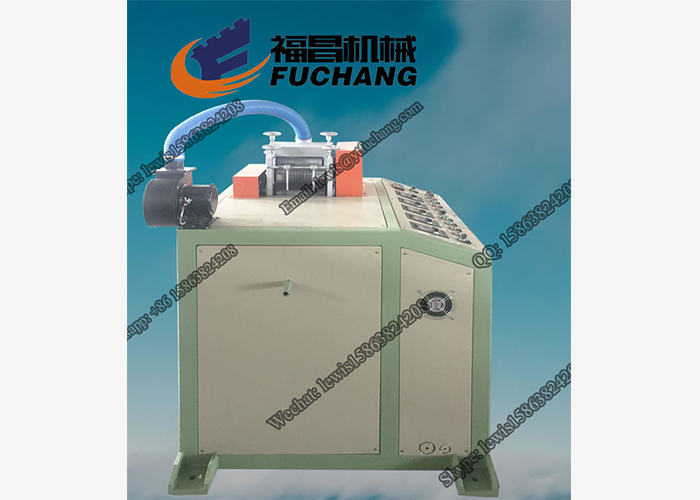

Haul off and cutting unit

1.Haul off motor Power:0.75KW,frequency control timing.

2.Cutting motor power:0.75KW,frequency control timing.

3.5set Frequency converter inside.
