Features EPE Foam Sheet Extruder Line:

1.Automatic feeding material, equipped with automatic alarm system when lack of raw material.

2.The cool method adopt air cooling & water cooling. The control of the temperature is steady and exact. The temperature is dropped quickly.

3.The filter changer system has two holes no stop, no cut off material. Automatic hydraulic screen changer, save time, can increase production to 10%.

4.Machine head control adopt diaphragm-type pressure gauge, guarantee the quality of sheet is steady.

5. The winding automatic change over, the length fix long .automatic counting, the longest width of rewinding can be 2.8m.

6.There is an explosion-proof electric machine beside the butane gas pump to ensure the safety.

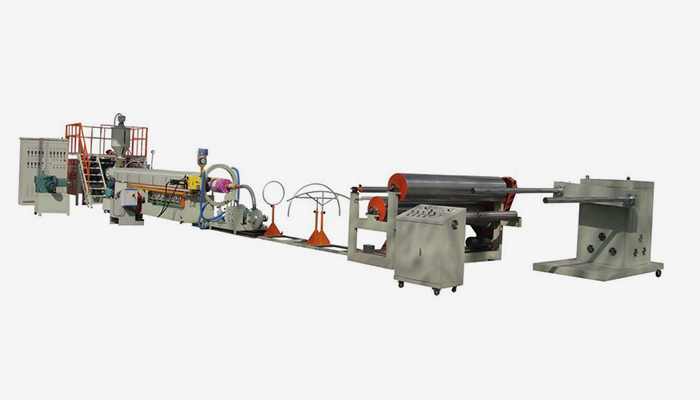

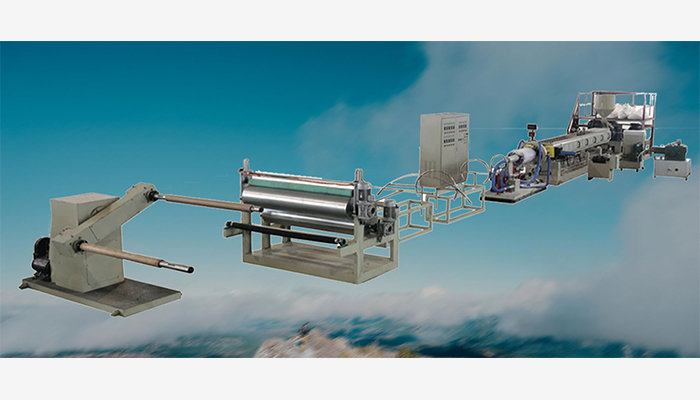

Principle of EPE Foam Sheet Extruder Line:

EPE Foam Sheet Extruder Line introduction : The L/D of screw is 55 : 1.The raw material is high pressure and low density polyethylene . Through extruding system basis on formulation the raw material and the auxiliary material are transported into hopper by auto feeding system. The GMS will be injected into barrel by the pump as anti-contractor agent . Butane pump inject the liquid butane into the screw barrel and foam .The temperature is dropped by the barrel then the products will be extruded from the machine head . Fixed and cooled by fixing drum then after processed by expanding system ,haul-off system and winding system . According to the demand for length by customer, automatically warned by meter counter, and then change rolls automatic .After make record of the weight and packed can be delivery to the warehouse.

Hopper system

Material:Stainless Steel

Feeding capacity:0-1.5kg/hr

Driving motor for talc injection copper :0.25KW

The motor is controlled by inverter to make talcum powder injection accurate and stable.

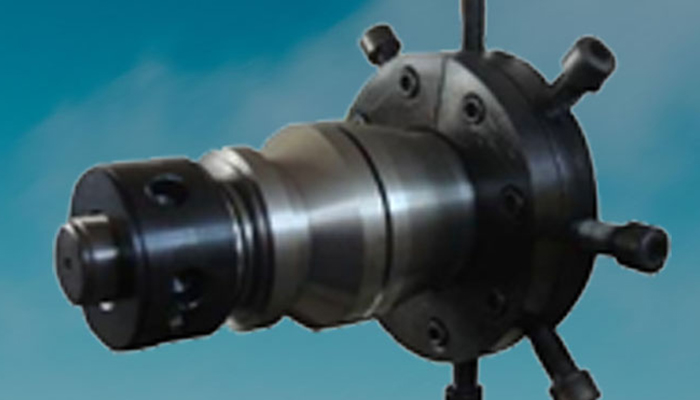

Foaming head unit

Model: Round die head for expanding

Material: carbon alloy steel

Heating method: heater

Fuse pressure panel:1Set 70MPa

Fuse temperature: T/M detector, 1 detecting site

Diameter of die lips: user decides himself based on the width of sheet.

Thickness control: regulate by the spread of spiral stick and the distance between mold heads.

Die lip Material: carbon alloy steel

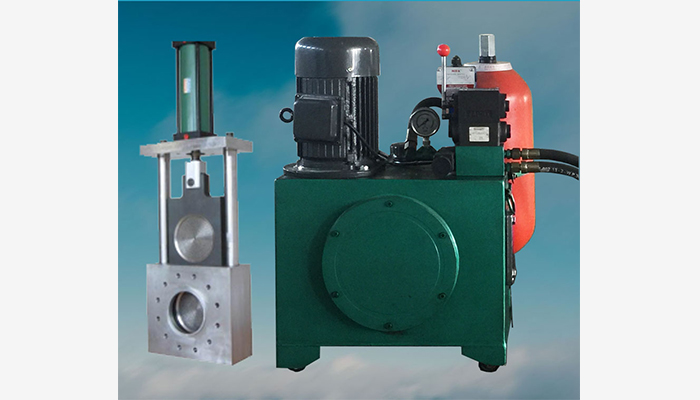

Automatic Screen changer

Bypass converting screen changer, material pressure is filter equally when screen is changed, no stop, no sheet broken, no wasted material.

Motor power: 2.2 KW

Heating area: 3Unit

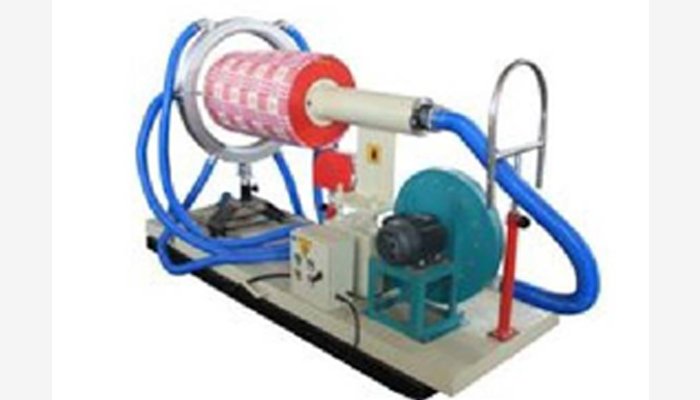

Air ring and shaping drum unit

Air ring Material: Aluminum Blowing method: air blower

Shaping drum Material: steel

Cooling method：Wind cooling

Methods for cutting open: round cutter motor driven

Shaping drum size: customer product decided

Air blower: 1.5KW
