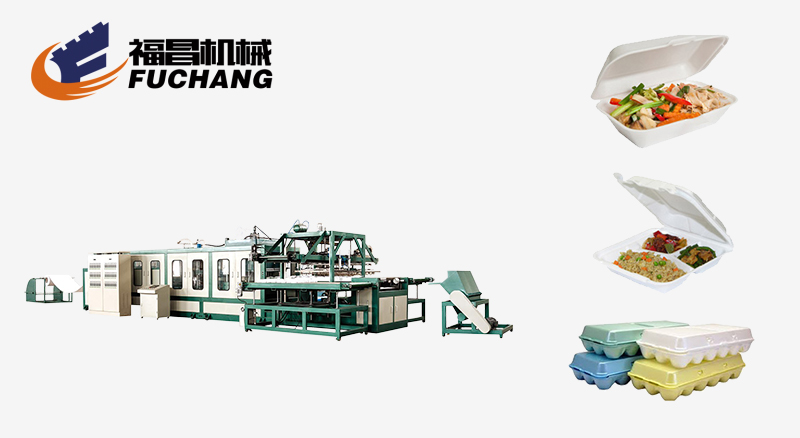

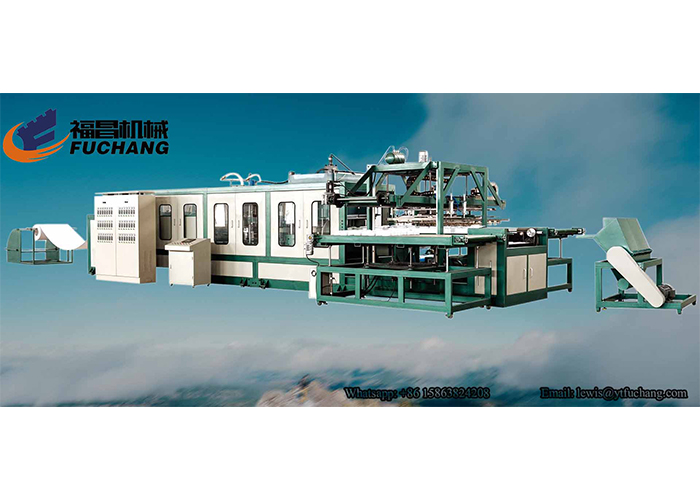

Fully Auto Forming Machine with Robot Hand(FC-1100/1250) Introduction:

FC PS vacuum forming machine is all-powerfull thermoforming machine with integrating vacuum forming,cutting off,stacking parts and counting of products,composited with those part as below:

Loading parts-Heating parts(three heating unit)-forming parts-cutting off parts-double workstation Robot hand-winding parts for scraps)or crusher in line)- products conveyor double station.

FC PS vacuum forming machine ,whith great dependable stability,integrates the forming,cutting off and stacking as well conveyor at the same time.

FC PS vacuum forming machine is much convenient for operator as the humanly design,In addtion,It has the feature of the bigger forming area,faster speed of fomring and highly automation.

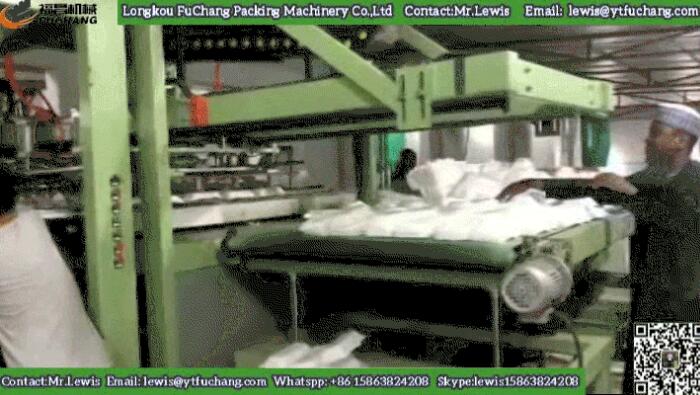

The Products will be collected with stacking parts and coneyed automatically via conveyor.The scraps will be winded or crushed in liine also.

The more energy will be saved,The safety of operator will be enhanced.but the cost of running machine will be economized.

The heating parts of vacuum forming malchine is designed to be three heating control,the temperature of which is from low to high,in order to make the products perfect.

As the performance of PS foam sheet,such as strength,stretch and heating-resist,will be favrable for the forming in the low temperature setting.

General Information of Fully Auto Forming Machine with Robot Hand(FC-1100/1250)

There is hydraulic station used for the forming and cutting off parts as the driving,with the feature of big molds punch power and higher speed.

And the cutting off board could be moved forwarder and back to meet the actual needs of different molds.

The knife molds could be micro-adjusted to get the accurate cutting.

The robot had of PS Vacuum forming machine could be adjusted to move up and down,front and back,using the electronic adjustment control,to meet the different needsof molds with various sizes.And the suction cup of mechanical hand could be added or reduced as the real operations to meet the need of final products.

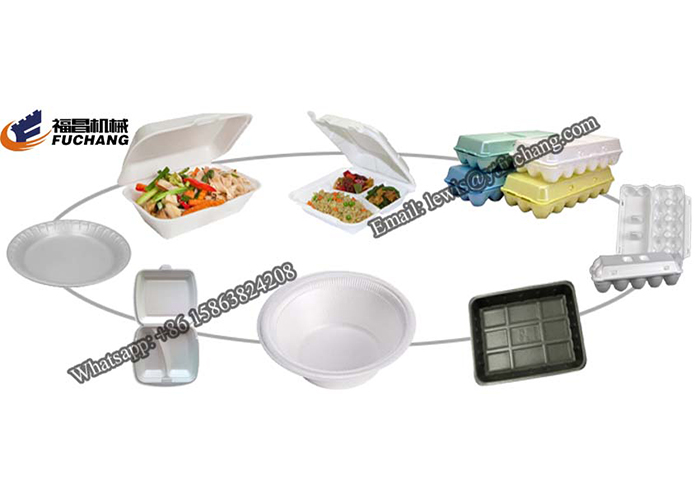

Applications:

Ps foam fast food box

PS foam tray

PS foam bowl

PS foam pizza box

PS foam egg tray

PS foam egg carton

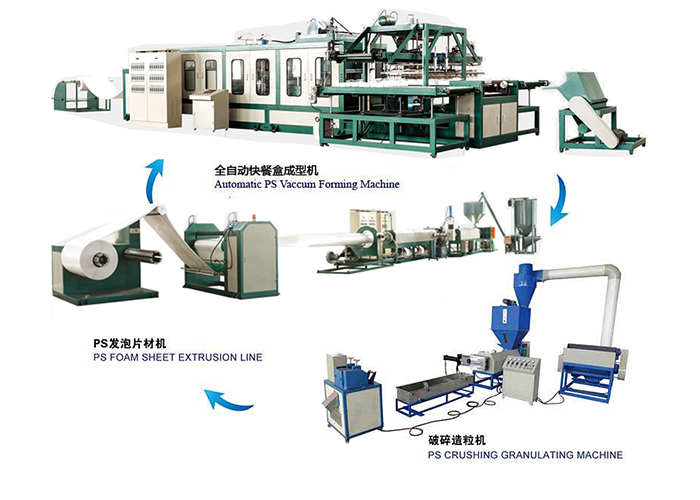

FC-105/120 PS Foam Sheet Extrusion Line

PS/PSP(Polystyrene) Foam Sheet Machinery adopts Gentian type double-stage series high foam technology. The raw material is general polystyrene granule. In the extruding process, vesicant is injected at high pressure. After extruding, foaming, cooling, shaping and hauling off, it is winding to finished PS foam sheet rolls. After vacuum forming system, the finished PS foaming sheet can be made into variety of packaging container such as fast food box, aquatic plate, supermarket tray, cake tray, KT board, instant noodle bowl, foam tray etc. It is widely used in the packing of food, fruit, advertising, industrial products and so on. This equipment adopts high speed non-stop hydraulic filter changer and PLC controller, it is easy for operation.

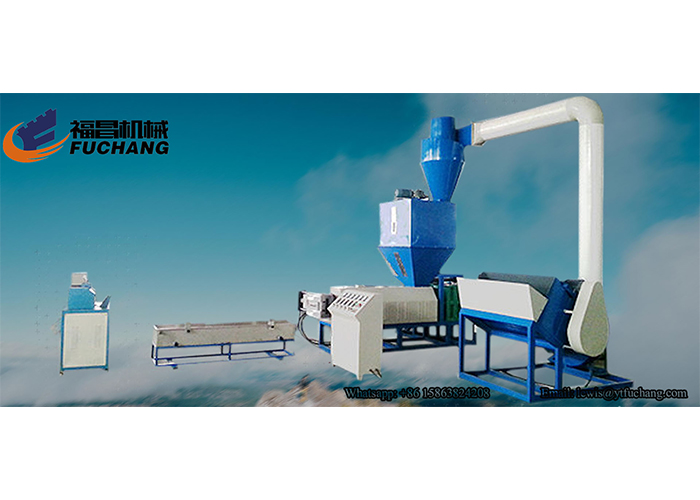

PS recycling machine

PS Recycling Machine can process PS/PE/PP material and it is mainly used to recycle the high foam polystyrene and high foam polystyrene products. It is the ideal equipment to recycle the waste materials. It features compact structure and easy operation.

Some Advantage of our PS Foam Machinery

1.Our PS Foamed Machinery adopts high quality stainless steel refining made.The advantages are nonrust,wear-resisting, elegant surface ,fast and convenient feeding material, humanized operation,save labor cost and improve product capacity.

2.Our PS Foamed Machinery adopts international famous brand hydraulic part,through hundreds of strick testing. More than 80 countries years of using experience prove: this system using effect is reliable and safty, performance reaches to the world’s advanced level. The advantages are light weight,small volume, small motion inertia, quick response,big power,low noise, wear well and high degree of automation.

3.Our PS Foamed Machinery adopts advanced vacuum forming technology, forming and shaping one-time finish. Not only guarante the product quality, but also improve the product capacity.The working table adopts high strength steel plate,through laser welding, it is big strength and high tenacity. The mould adopts aviation aluminium alloy through tens of process refining made. The advantages are high precision,high strengh, light weight, long using life, corrosion.

Supply Mold by custom request

Mold is the most imporatant part for PS Vaccum forming machine,It will decide the quality of final product of prodcution line.

We can offer the mould draft design for customers. Apart from designing and producing moulds for customers, we also provide the professional training and technical supporting in mould design and production.

We can also customize customers’ design, pattern and dimension, then the required molds will be made to fit for products to be packed.

Advantages of our mold

Fuchang Was set up in 1995, over 23 years experience in this field, Chinese reliable supplier, supported by the government and university.

Making the good quality paper tray products lies in the moulds.We’ve acquired many experiences in moulds-making and owned a professional technician team to make mould according to customers’ requirement.

We have our own CNC and mold processing centres, to make sure a good polishing surface and high accuracy.

Why Choose Fuchang:

Mould quality guaranteed.

CAD-CAM design program with high accuracy.

Polishing and processing with CNC machine with compact surface.

Mould maintenance and repaire training.

With hundreds of mould designs, like egg tray mould, egg carton mould, tableware mould, fruit tray mould, medical care products mould, and etc.

Mould Dies Processing

1.CAD software design according to customers’ design, pattern and dimension or sample.

2.Put aluminum block into CNC machine for processing and polishing.

3.Drill holes on mould dies reasonably for pulp and water flowing away.

4.Cover the stainless steel wiremesh on the forming mould for pulp suction.

5. Assembly moulds and polish again.

Why Choose Fuchang

Mould quality guaranteed;

CAD-CAM design program with high accuracy;

Polishing and processing with CNC machine with compact surface;

Mould maintenance and repaire training;

With hundreds of mould designs, like egg tray mould, egg carton mould, tableware mould, fruit tray mould, medical care products mould, and etc.

Honor

Longkou FuChang Packing Machinery Co.,Ltd has obtained ISO9001 Certificate and CE Marking. Besides, Fuchang is the vice-president enterprise of China Pulp Molding Association. However, we’ve never stopped to go forward. As a leading company for pulp molding equipments in China, we control over the quality of the products strictly.Our products have passed the inspection by China quality and technical supervision bureau. Now we are producing more than 100 kinds of pulp molding machinery exported to over 50 countries.

Why Choose Fuchang

A professional team with strong cohesion is one main reason why Fuchang achieved success. Employees in this team are senior engineers and technicists who made great contribution to mechanical design and manufacturing, electrification and automation, heat energy, paper making, process engineering, mould design. To solve customer’s potential worries and problem, our engineers are available to customer’s factory for installation, debugging and training. The engineer will provide the operational approach, production process technology, maintenance method.

Honor

Our machines have exported to many countries ,such as Egypt ,Ghana, South Africa ,Uzbekistan, Thailand ,Iceland ,India ,Venezuela ,Vietnam and so on .We keep up the management concept of taking customer’s profit into first consideration ,helping customers reduce the production cost ,improving the quality of the products and offering the best after-sale service.

Our Advantage Services:

We have our own developing and manufacturing team, which guarantees that the advanced technology and excellent quality will be offered for our customers.

We support customize service. If any customers have new ideas about the products, we can provide a unique machine to make the products according to your requirements.

For every customer, we will choose the best fit material and components for the equipment.

We have our own mould design and making team. Sophisticated mould designs are available for customer’s selection. We also accept the samples sent by customers and we will design and make out to meet their needs.
