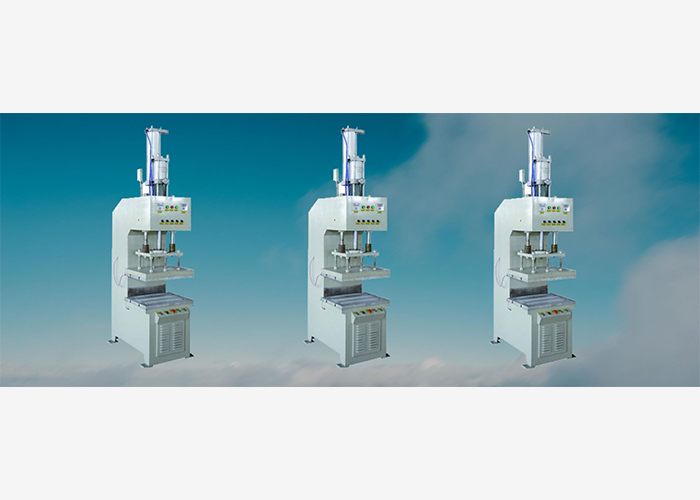

Hot Press Machine Introduction:

Hot Press Machines are the further machine of the Reciprocating Egg Tray Machine. Using this machine can let the products of the reciprocating egg tray machine more flat and smooth. According to the different products change relevant hot press moulds. The Hot Press moulds mainly use the high temperature and pressure to make the products more standard of high quality .

It is an kind of equipment and products of Egg Tray Further Machine.

Production Information and Our Warranty:

Status: Brand new

Product Type: Hot Pressing Machinery

Processing Type: Pulp Molding Machine

Place of origin: Shandong China

Brand: FUCHANG

Voltage: 220V – 440V

Approval: CE, TUV,SGS, ISO9001

Warranty: 12 Months

After-Sale Service: Engineers available to service machinery overseas.

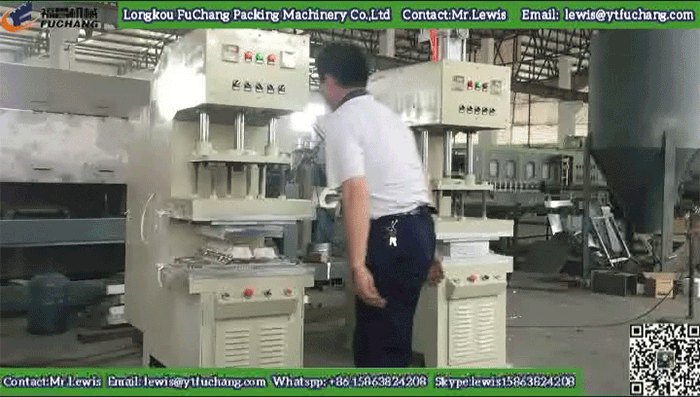

Hot Press Machine working flow

Hot-press machine uses high temperature (160~190℃) and high press (5-8tons) to fix the shape of the dried paper tray products, so the appearance of products becomes more smooth and neat.

The working temperature is 160~190℃, but it can be adjustable(after setting the temperature, the constant temperature will be automatically regulated).

With infrared security devices.

With security device of prevent top mould fall.

With function of top mould and bottom mould blowing.

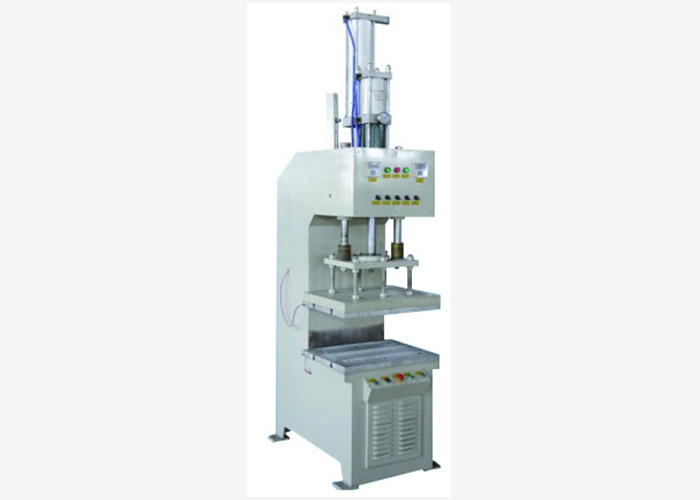

Hot Press Machine Specifications:

Machine Name: Hot Pressing Machinery

Machine Model: FC-6048

Automation: Semi Automatic

Mould Plate Size: 600*480mm

Working Pressure: 5-8Ton

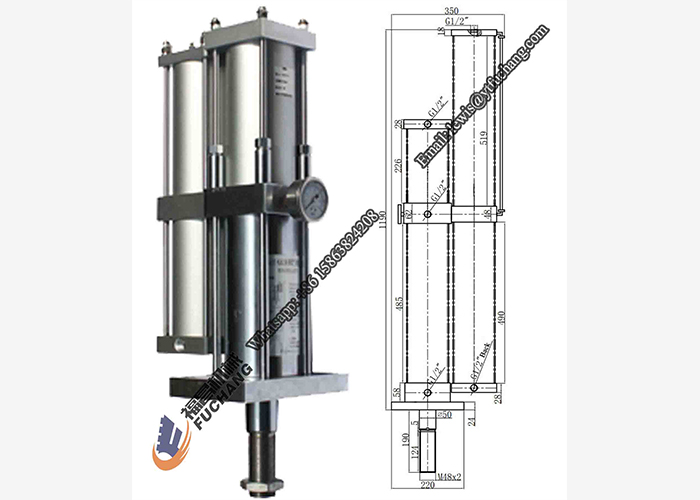

Gas-liquid Pressure Cylinder: 125*400mm

Electricity Heating: 7.6kw

Working Temperature: 160~190℃

Working Cycle: 6~10s

Compressed Air Required: 0.5~0.6Mpa, 0.6m3/min

Physical Dimension: 600*900*1700mm

Weight: 800Kgs

Other special specification can be customized according to clients’ requirement.

Many Choices for You:

Our series of hot-press machines include various specifications, including 3tons, 5tons, 10tons, 15tons, 20tons, 30tons, 100tons and 200tons.

our factory support customized design.

Our Hot press machine has different heating mode of electric heating, conduction oil heating.

Pneumatic, hydraulic and pneumatically/hydraulic can be selected.

Approval: CE, TUV,SGS, ISO9001

Applications of Hot Press Machine.

Egg tray: 20,30,40packed egg tray quail egg tray.

Egg carton:4,6, 10,6+6,12,15,18,24 packed egg carton.

Agricultural products:Berry Punnets,Fruit tray, seeding cup,Peat Pot.

Cup Carriers:2,4 Paper Cup Carriers.

Disposable Medical Care Products: Bedpan, sick pad, female urinal.

Packages: Shoe tree, industrial package.

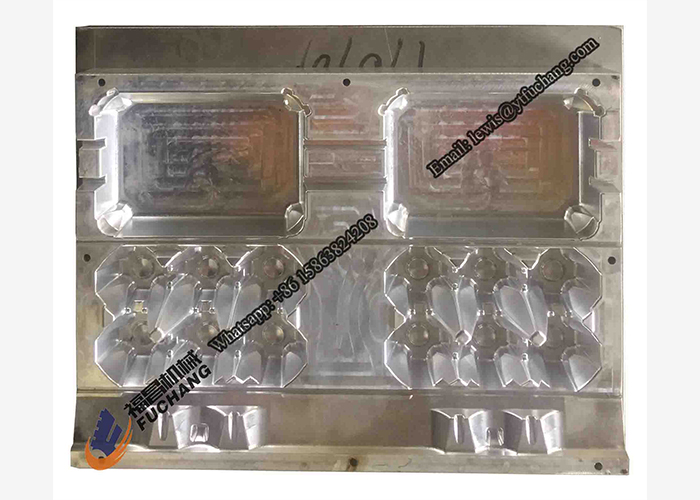

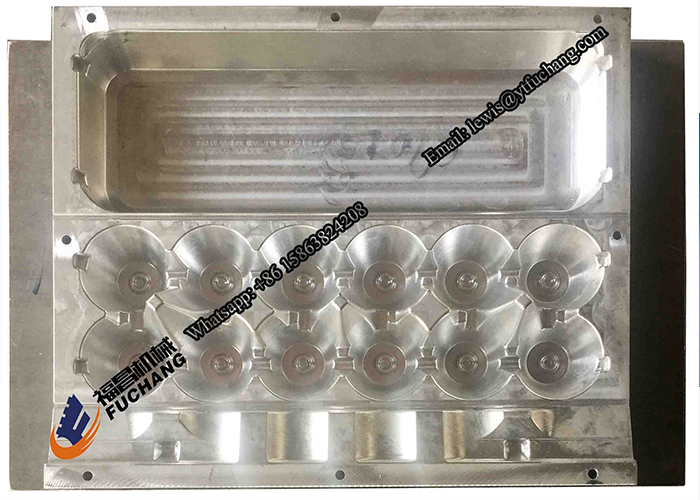

Supply Mold by custom request

Mold is the most imporatant part for Pulp Moulding machine,It will decide the quality of final product of prodcution line.

We can offer the mould draft design for customers. Apart from designing and producing moulds for customers, we also provide the professional training and technical supporting in mould design and production.

We can also customize customers’ design, pattern and dimension, then the required molds will be made to fit for products to be packed.

Advantages of our mold

Fuchang Was set up in 1995, over 23 years experience in this field, Chinese reliable supplier, supported by the government and university.

Making the good quality paper tray products lies in the moulds.We’ve acquired many experiences in moulds-making and owned a professional technician team to make mould according to customers’ requirement.

We have our own CNC and mold processing centres, to make sure a good polishing surface and high accuracy.

Why Choose Fuchang:

Mould quality guaranteed.

CAD-CAM design program with high accuracy.

Polishing and processing with CNC machine with compact surface.

Mould maintenance and repaire training.

With hundreds of mould designs, like egg tray mould, egg carton mould, tableware mould, fruit tray mould, medical care products mould, and etc.

Why Choose Fuchang

Mould quality guaranteed;

CAD-CAM design program with high accuracy;

Polishing and processing with CNC machine with compact surface;

Mould maintenance and repaire training;

With hundreds of mould designs, like egg tray mould, egg carton mould, tableware mould, fruit tray mould, medical care products mould, and etc.

Honor

Longkou FuChang Packing Machinery Co.,Ltd has obtained ISO9001 Certificate and CE Marking. Besides, Fuchang is the vice-president enterprise of China Pulp Molding Association. However, we’ve never stopped to go forward. As a leading company for pulp molding equipments in China, we control over the quality of the products strictly.Our products have passed the inspection by China quality and technical supervision bureau. Now we are producing more than 100 kinds of pulp molding machinery exported to over 50 countries.

Why Choose Fuchang

A professional team with strong cohesion is one main reason why Fuchang achieved success. Employees in this team are senior engineers and technicists who made great contribution to mechanical design and manufacturing, electrification and automation, heat energy, paper making, process engineering, mould design. To solve customer’s potential worries and problem, our engineers are available to customer’s factory for installation, debugging and training. The engineer will provide the operational approach, production process technology, maintenance method.

Honor

Our machines have exported to many countries ,such as Egypt ,Ghana, South Africa ,Uzbekistan, Thailand ,Iceland ,India ,Venezuela ,Vietnam and so on .We keep up the management concept of taking customer’s profit into first consideration ,helping customers reduce the production cost ,improving the quality of the products and offering the best after-sale service.

Our Advantage Services:

We have our own developing and manufacturing team, which guarantees that the advanced technology and excellent quality will be offered for our customers.

We support customize service. If any customers have new ideas about the products, we can provide a unique machine to make the products according to your requirements.

For every customer, we will choose the best fit material and components for the equipment.

We have our own mould design and making team. Sophisticated mould designs are available for customer’s selection. We also accept the samples sent by customers and we will design and make out to meet their needs.
